The full-wave rectifier can be constructed in 2 ways. The first method makes use of a centre tapped transformer and 2 diodes. This arrangement is known as Center Tapped Full-Wave Rectifier. The second method uses a normal transformer with 4 diodes arranged as a bridge. This arrangement is known as a Bridge Rectifier.. Connect capacitors in parallel across the output terminals of the bridge rectifier. Electrolytic capacitors are commonly used for this purpose to smooth out the pulsating DC signal. 7. Integrate the Voltage Regulator. Attach the LM7812 voltage regulator to the PCB and connect its input pin to the filtered DC voltage produced by the bridge.

Full Wave Bridge Rectifier With Capacitor Filter And Regulator

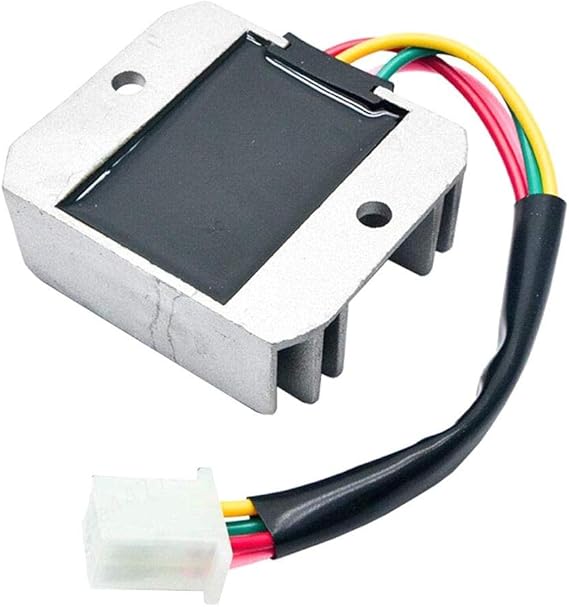

Rectifier Universal Voltage Regulator for Motorcycle Bike Quad Scooter
